Device constantly dragging right

Unread post by hej.luxom » Thu Feb 13, 2020 10:01 pm

It's like the right on the dpad got stuck.
First I though it's a faulty analog stick, but it's still exist after disconnecting it. Tried to clean the silicone and the dpad, no help.
Impossible to play. Am I doing something wrong?

User avatar
Etx
Posts: 40
Joined: Mon Jan 20, 2020 9:10 am
languages_spoken: english, chinese, russian, ukrainian
ODROIDs: ODROID-GO Advance
Has thanked: 0
Been thanked: 5 times
Contact:

Re: Device constantly dragging right

Unread post by Etx » Fri Feb 14, 2020 1:33 am

Try to remove the contact rubber, does the malfunction remains?

hej.luxom
Posts: 10
Joined: Thu Feb 13, 2020 9:56 pm
languages_spoken: english
ODROIDs: Go, advance
Has thanked: 0
Been thanked: 0
Contact:

Re: Device constantly dragging right

Unread post by hej.luxom » Fri Feb 14, 2020 3:08 am

Yes, I tried, still dragging right. Strangely not in the main menu, where I choose console systems, but in games like gba or psp or gbc.

phedon
Posts: 12
Joined: Fri Feb 14, 2020 3:28 am
languages_spoken: english
ODROIDs: Go
Go Advance
Has thanked: 2 times
Been thanked: 0
Contact:

Re: Device constantly dragging right

Unread post by phedon » Fri Feb 14, 2020 3:32 am

Same here, exact same issues - dragging right in-game, no problem in the menu. Unfortunately makes the ogoa unusable. :|

Heufneutje
Posts: 3
Joined: Fri Feb 14, 2020 7:06 am
languages_spoken: english
ODROIDs: ODROID GO Advance
Has thanked: 0
Been thanked: 0
Contact:

Re: Device constantly dragging right

Unread post by Heufneutje » Fri Feb 14, 2020 7:09 am

I was also having this issue but I managed to fix it by making sure the ribbon cable for the analog stick is connected properly. After running evtest with and without an analog stick plugged in I determined that even without an analog stick it registers a value of 250 on the X-axis, making it go to the right. So it not being plugged in correctly seems like a very plausible cause to me.

phedon
Posts: 12
Joined: Fri Feb 14, 2020 3:28 am
languages_spoken: english
ODROIDs: Go
Go Advance
Has thanked: 2 times
Been thanked: 0
Contact:

Re: Device constantly dragging right

Unread post by phedon » Fri Feb 14, 2020 7:43 am

Ah, thanks for your reply. So I guess I can't fix the issue because of this: viewtopic.php?f=196&t=37740. Damn.

hej.luxom
Posts: 10
Joined: Thu Feb 13, 2020 9:56 pm
languages_spoken: english
ODROIDs: Go, advance
Has thanked: 0
Been thanked: 0
Contact:

Re: Device constantly dragging right

Unread post by hej.luxom » Fri Feb 14, 2020 8:02 pm

Would be great to add an option in the settings to disable the analogue stick, so it's not annoying if it's gets broken or start drifting, so you can still play with dpad without any issues.

Heufneutje
Posts: 3
Joined: Fri Feb 14, 2020 7:06 am
languages_spoken: english
ODROIDs: ODROID GO Advance
Has thanked: 0
Been thanked: 0
Contact:

Re: Device constantly dragging right

Unread post by Heufneutje » Fri Feb 14, 2020 9:06 pm

That would be great. Or at least something that makes it stay neutral when there's nothing connected.

hej.luxom
Posts: 10
Joined: Thu Feb 13, 2020 9:56 pm
languages_spoken: english
ODROIDs: Go, advance
Has thanked: 0
Been thanked: 0
Contact:

Re: Device constantly dragging right

Unread post by hej.luxom » Sat Feb 15, 2020 3:30 am

Done some investigation on my unit and actually I think the ribbon cable connector is faulty. It's soldered on properly, but it doesn't hold the ribbon cable tight, even after flapping the black lock thingy down the ribbon cable is not secure in there, it's loose. And it's making the whole unit useless. Anyone can help?

WxMan
Posts: 8
Joined: Thu May 24, 2018 9:27 pm
languages_spoken: english
ODROIDs: Go, XU4, Go Advance
Has thanked: 0
Been thanked: 1 time
Contact:

Re: Device constantly dragging right

Unread post by WxMan » Sat Feb 15, 2020 9:36 am

Just got my device from Ameridroid. Having the same issue. The analog ribbon does not stay snug in slot even with the clip pushed down. No game works because the unit thinks the stick is being pushed to the right.

WxMan
Posts: 8
Joined: Thu May 24, 2018 9:27 pm
languages_spoken: english
ODROIDs: Go, XU4, Go Advance
Has thanked: 0
Been thanked: 1 time
Contact:

Re: Device constantly dragging right

Unread post by WxMan » Sat Feb 15, 2020 10:18 am

OK, as Heufneutje stated, this can be fixed. What I noted here is that when you flip up the plastic tab on the analog ribbon connector, you need to lift it up all the way (like 90 degree angle). Then insert the ribbon, hold it in place while you lock it back down. It appears that you have to raise that flap all the way up for the ribbon to get fully snug into connector and to make it hold tight. If you only raise it half or 3/4ths of the way, it doesn't seem to lock down the ribbon connector correctly. It really does come down to trial and error.

phedon
Posts: 12
Joined: Fri Feb 14, 2020 3:28 am
languages_spoken: english
ODROIDs: Go
Go Advance
Has thanked: 2 times
Been thanked: 0
Contact:

Re: Device constantly dragging right

Unread post by phedon » Sat Feb 15, 2020 10:39 am

I found an how-to assemble video that's imo much better than the shaky, partly time lapse video. He explains everything calm and detailed: https://youtu.be/ncrmk0n2Iv4

hej.luxom
Posts: 10
Joined: Thu Feb 13, 2020 9:56 pm
languages_spoken: english
ODROIDs: Go, advance
Has thanked: 0
Been thanked: 0
Contact:

Re: Device constantly dragging right

Unread post by hej.luxom » Sat Feb 15, 2020 5:36 pm

Tried to have the flap totally when connecting, same problem. So now I can throw out my unit?

WxMan
Posts: 8
Joined: Thu May 24, 2018 9:27 pm
languages_spoken: english
ODROIDs: Go, XU4, Go Advance
Has thanked: 0
Been thanked: 1 time
Contact:

Re: Device constantly dragging right

Unread post by WxMan » Sat Feb 15, 2020 11:42 pm

hej.luxom, It may take several tries to get this right. Best advice is to open it all the way (90 degrees) and insert ribbon then close. After doing that, take screwdriver or a pair of tweezers and gently check to see if ribbon cable is secure in connector. It took me at least 6-7 tries to get that ribbon secure in there.

sharks
Posts: 4
Joined: Sat Feb 15, 2020 9:25 pm
languages_spoken: english
Has thanked: 0
Been thanked: 0
Contact:

Re: Device constantly dragging right

Unread post by sharks » Sun Feb 16, 2020 3:02 am

when you put the ribbon cable into the open flap see how there are "grooves" in the cable. I used my fingernails there and pushed the cable in on both sides, and locked it.

hej.luxom
Posts: 10
Joined: Thu Feb 13, 2020 9:56 pm
languages_spoken: english
ODROIDs: Go, advance
Has thanked: 0
Been thanked: 0
Contact:

Re: Device constantly dragging right

Unread post by hej.luxom » Tue Feb 18, 2020 4:51 am

Still not solved, please help odroid

User avatar
odroid
Site Admin
Posts: 33398
Joined: Fri Feb 22, 2013 11:14 pm
languages_spoken: English
ODROIDs: ODROID
Has thanked: 409 times
Been thanked: 464 times
Contact:

Re: Device constantly dragging right

Unread post by odroid » Tue Feb 18, 2020 11:45 am

@hej.luxom,
Please contact "odroid at hardkernel dot com" with a URL link of your post.
They will help your RMA process if you purchased the board from our web-store directly.
Otherwise, contact your local distributor/reseller.

ferster
Posts: 2
Joined: Sat Feb 22, 2020 6:32 am
languages_spoken: english spanish
Has thanked: 0
Been thanked: 0
Contact:

Re: Device constantly dragging right

Unread post by ferster » Sat Feb 22, 2020 6:33 am

Hi, I have the same issue, no matter which emulator I'm using, characters go always to the right but only in game, not when using UI. I don't know what to do. I post a url to a video uploaded to my onedrive account.

https://1drv.ms/v/s!AqJe9jnfxO1Jg41Z64V ... w?e=wTJ2hD

phedon
Posts: 12
Joined: Fri Feb 14, 2020 3:28 am
languages_spoken: english
ODROIDs: Go
Go Advance
Has thanked: 2 times
Been thanked: 0
Contact:

Re: Device constantly dragging right

Unread post by phedon » Sat Feb 22, 2020 6:58 am

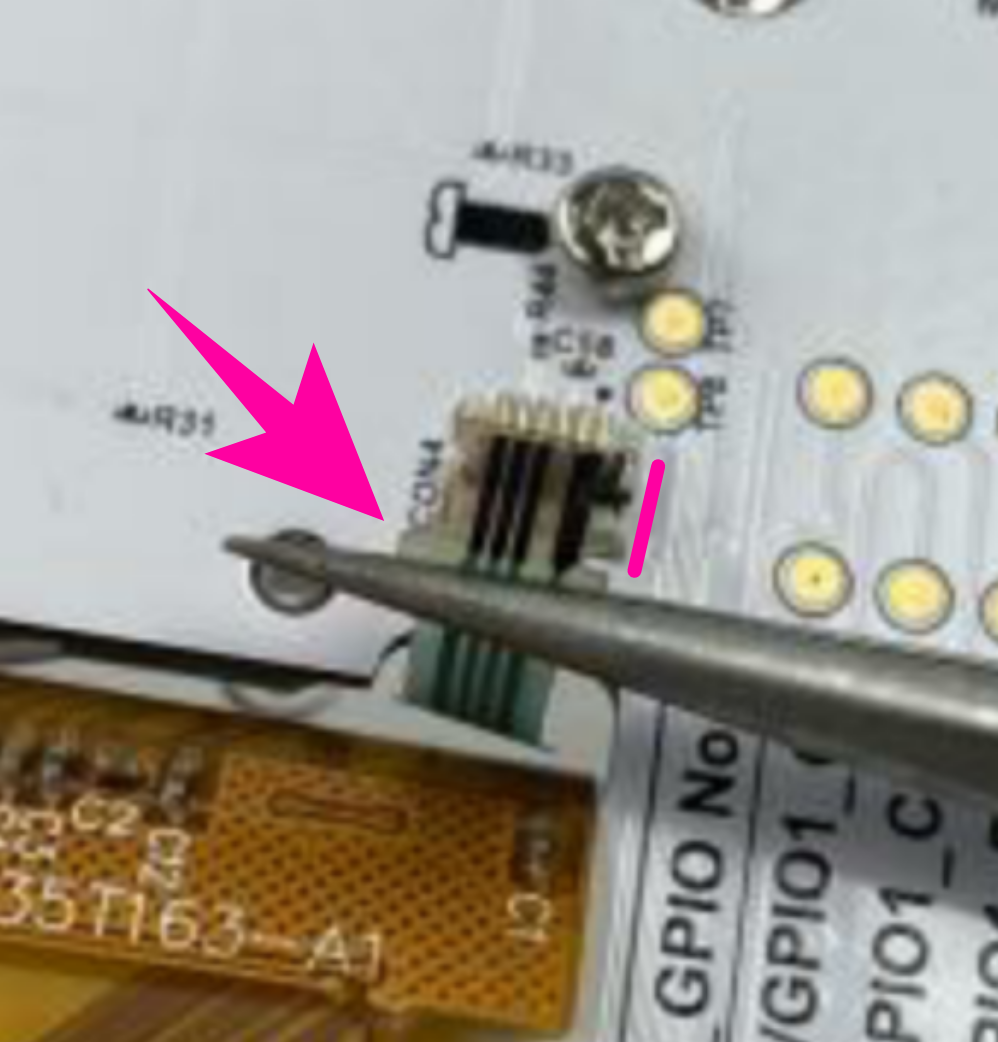

@fester you have to put it - gently - completely into the jack, it's a bit difficult because it's pretty tight in the end. Everything what is marked here with the line goes into the jack, up to where the arrow points to. Gently.

ferster
Posts: 2
Joined: Sat Feb 22, 2020 6:32 am
languages_spoken: english spanish
Has thanked: 0
Been thanked: 0
Contact:

Re: Device constantly dragging right

Unread post by ferster » Sat Feb 22, 2020 7:06 am

I'll try that. Thank you, Phedon.

phedon
Posts: 12
Joined: Fri Feb 14, 2020 3:28 am
languages_spoken: english
ODROIDs: Go
Go Advance
Has thanked: 2 times
Been thanked: 0
Contact:

Re: Device constantly dragging right

Unread post by phedon » Sat Feb 22, 2020 7:23 am

If the ribbon moves (even slightly), it's not yet positioned correctly. Had the problem too but now it works perfectly. It could happen, that you push the ribbon cable back down by accident while trying to connect it. As I wrote: try it gently, because the jack is super fragile.
Good luck.
PS: If it doesn't work I could take a better picture of what it should look like (ripped this one from the wiki).
